Flame Scanners F200K / F300K Fibre Optic
- For use on boiler systems with limited view of the flame
- Applicable at high temperatures in the normal growing range of a flame monitor and up to 350 °C
- F300K-FO, F300K-FO Ex-II
- F200K-FO, F200K-FO Ex-II
Technical Data
Technical Data |
F200K UV-6 Fibre Optic |
F300K Fibre Optic |
| Spectral region | UV (220 … 360 nm) | F300K UV-4.6 (215 … 360 nm) F300K UVIR-1 UV (215 … 360 nm)/IR (1000 … 1700 nm) |
| Level of protection | IP67, (F200K Standard/ExII) | IP67, (F300K Standard/ExII) |
| Permitted Operating temperature | -40 °C … +75 °C | -40 °C … +85 °C |
| Available lengths | min. 1.5 m to 10 m (gradations every 0.5 m) |
min. 1.5 m to 10 m (gradations every 0.5 m) |
| Housing material | Rigid housing (tubes): Stainless steel 1.4301 FV30-FO bracket: Seawater-resistant aluminium EN AW-6082 Fibre optics adapter: POM black Flexible housing: |
Rigid housing (tubes): Stainless steel 1.4301 FV30-FO bracket: Seawater-resistant aluminium EN AW-6082 Fibre optics adapter: POM black Flexible housing: |
| Bend radius (smallest) (only at flexible housing) |
250 mm | 250 mm |
| Cooling air connection | G ½“ | G ½“ |
| Purge/cooling air | Oil-free and dust-free cooling air/compressed air | Oil-free and dust-free cooling air/compressed air |
| Weight | ca. 2 kg + 1 kg/m | ca. 2 kg + 1 kg/m |
| Viewing angle | 6° | 6° |
Purpose

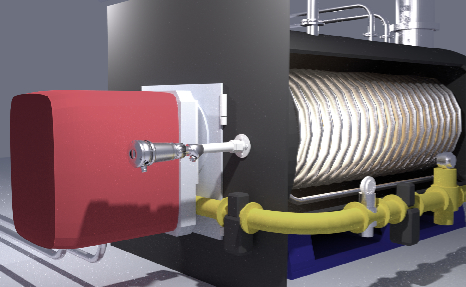

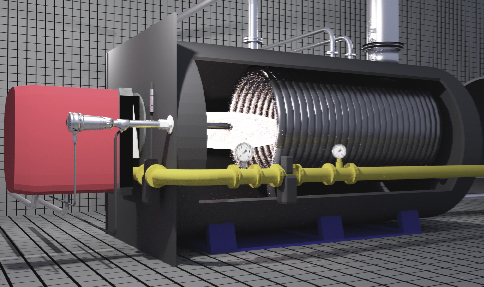

Installation example
The fibre optic option is a fibre optic bundle for use with LAMTEC F200K and F300K compact flame monitors. Fibre optics are used on burner installations where direct flame viewing is poor or not possible and/or where high process temperatures prevent local mounting of the flame scanner.
The fibre optics are permanently cooled using purge air; the maximum permitted operating temperature Tmax on the process side is 350 °C.
The fibre bundle itself is designed for max. 200 °C (constant temperature).
The following flame scanners in the fibre optic version can be used for the various applications:
- F200K-FO, F200K-FO Ex-II
- F300K-FO, F300K-FO Ex-II
The use of the fibre optic version for F200K Ex-I is not possible.
Selection criteria
| Type |
Spectrum / nm |
Preferred application / fuels |
|
F200K2 UV-6 |
220 … 360 |
Special application in combination with fibre optic |
| F300K UV-4.6 | 215 … 360 |
Special application in combination with fibre optic |
| F300K UVIR1 | UV (215 … 360 ) / IR (1000 … 1700 ) |
Special application in combination with fibre optic |
| F200K2 IR-1 F200K2 IR-1 |
1200 … 2800 | Coal dust |
